Model

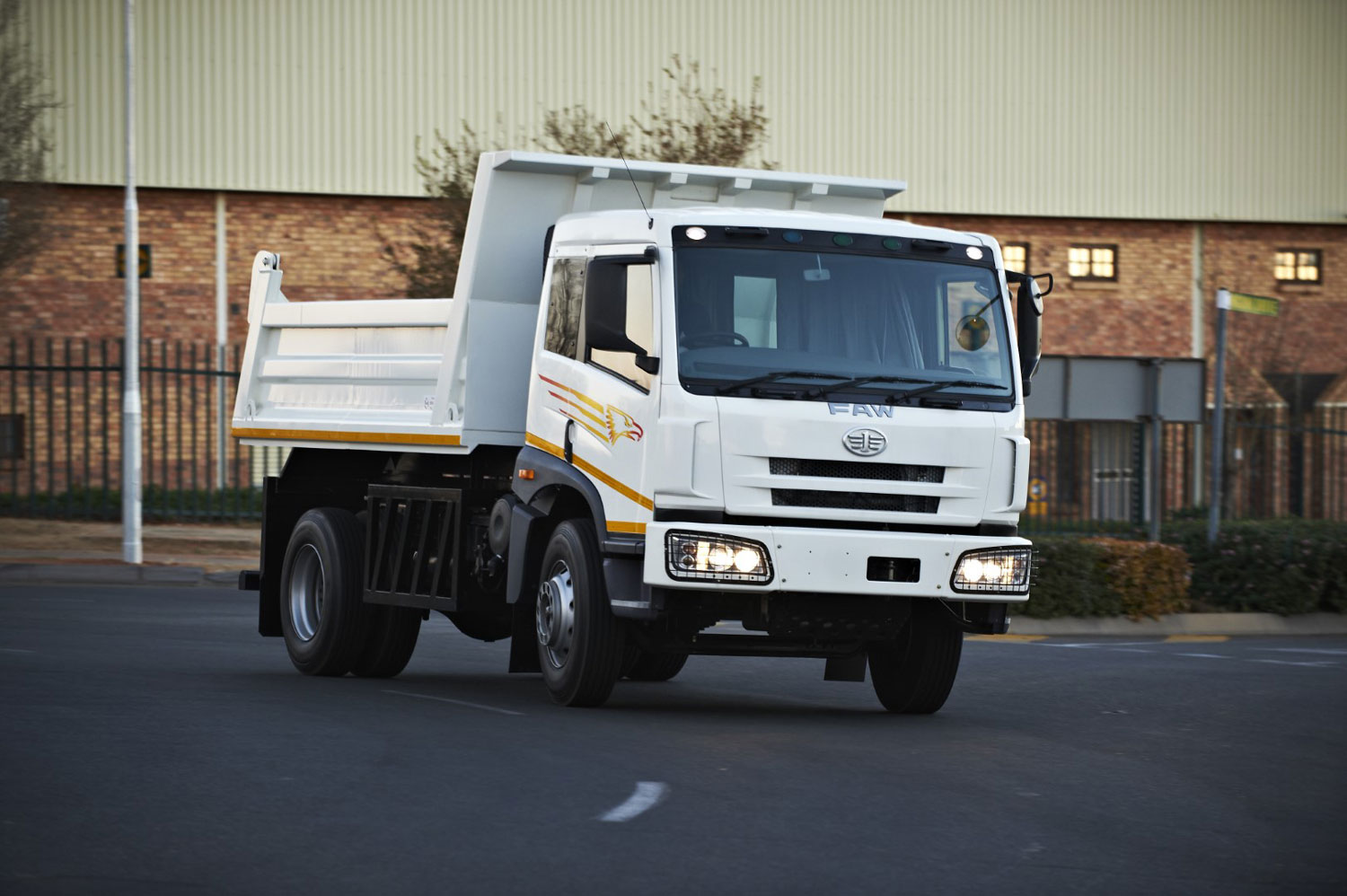

JK6 16.240 FD/FT

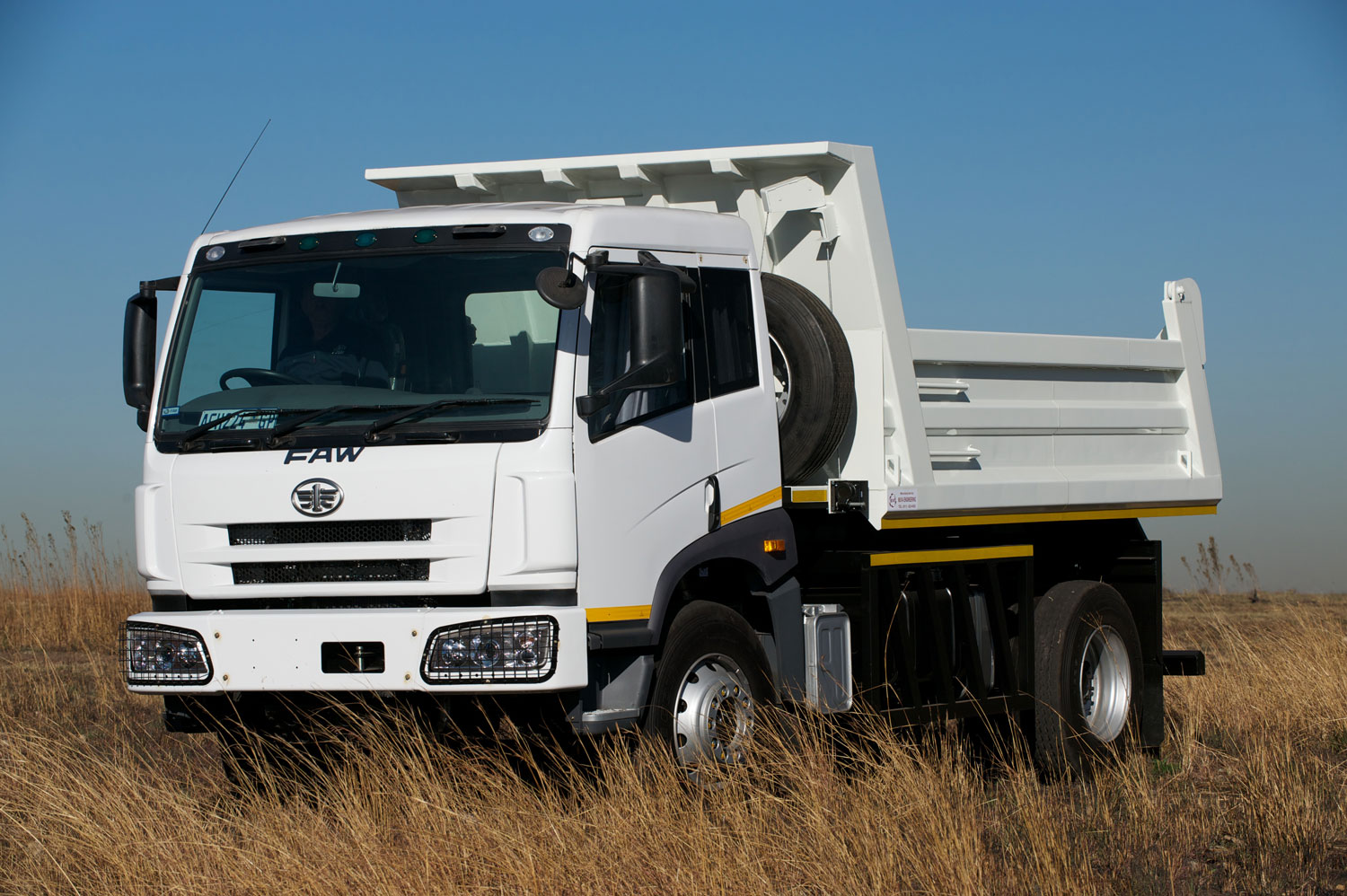

4x2 6m3 TIPPER & 4x2 TRUCK TRACTOR
Model JK6 16.240 FD/FT
Starting at R 615,000

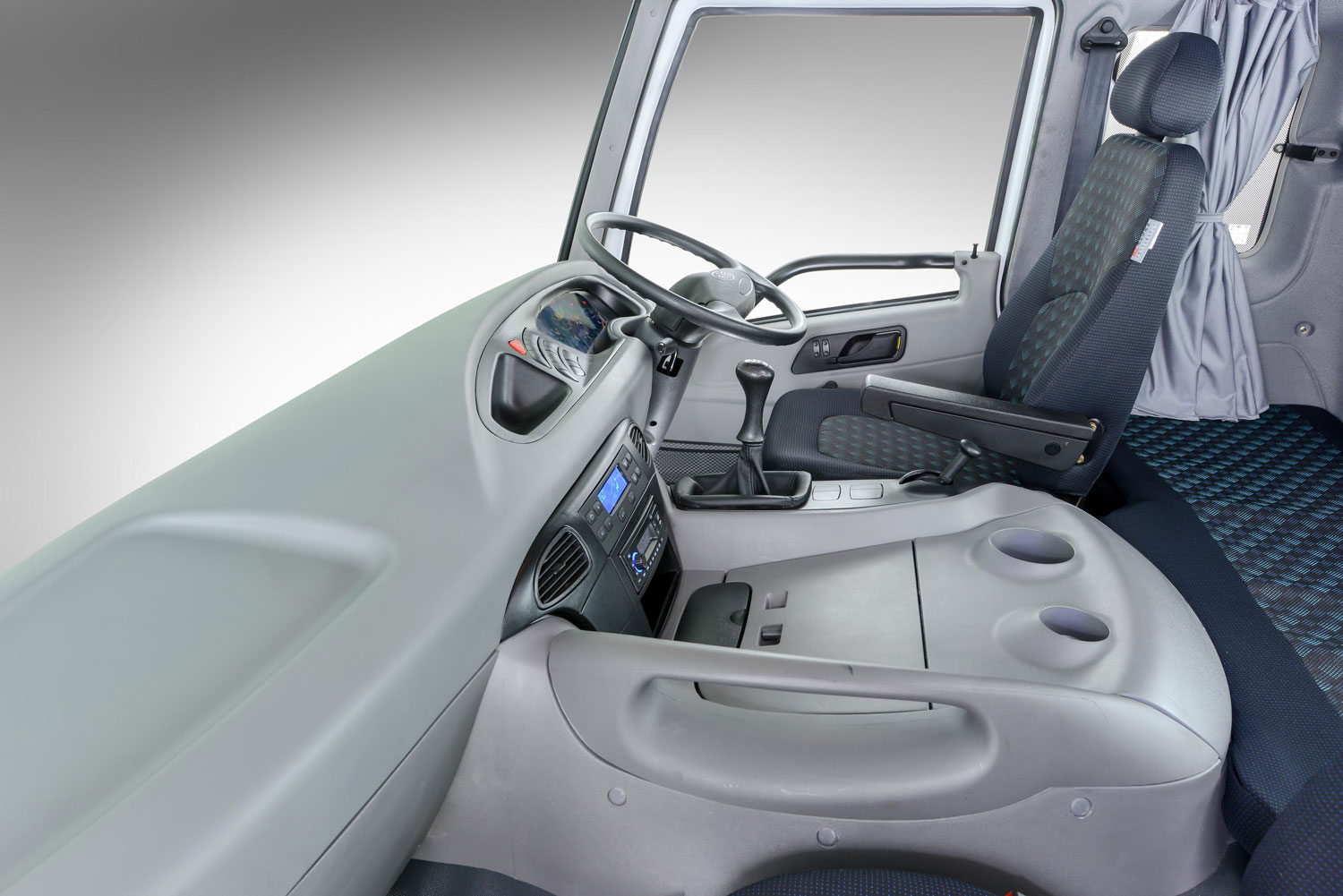

- Full Floating Extended High Roof Cab with innovative Flat Floor Design for optimal comfort
- 6 cylinder in line, water cooled, turbo charged & intercooled
- 8 Speed Range Change Transmission
- Full Air - Dual Circuit with ABS
- Front and Rear Suspension: Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
- Equipped with China's most fuel efficient engine
Discover the Highlights
Specifications
JK6 16.240 FD/FT

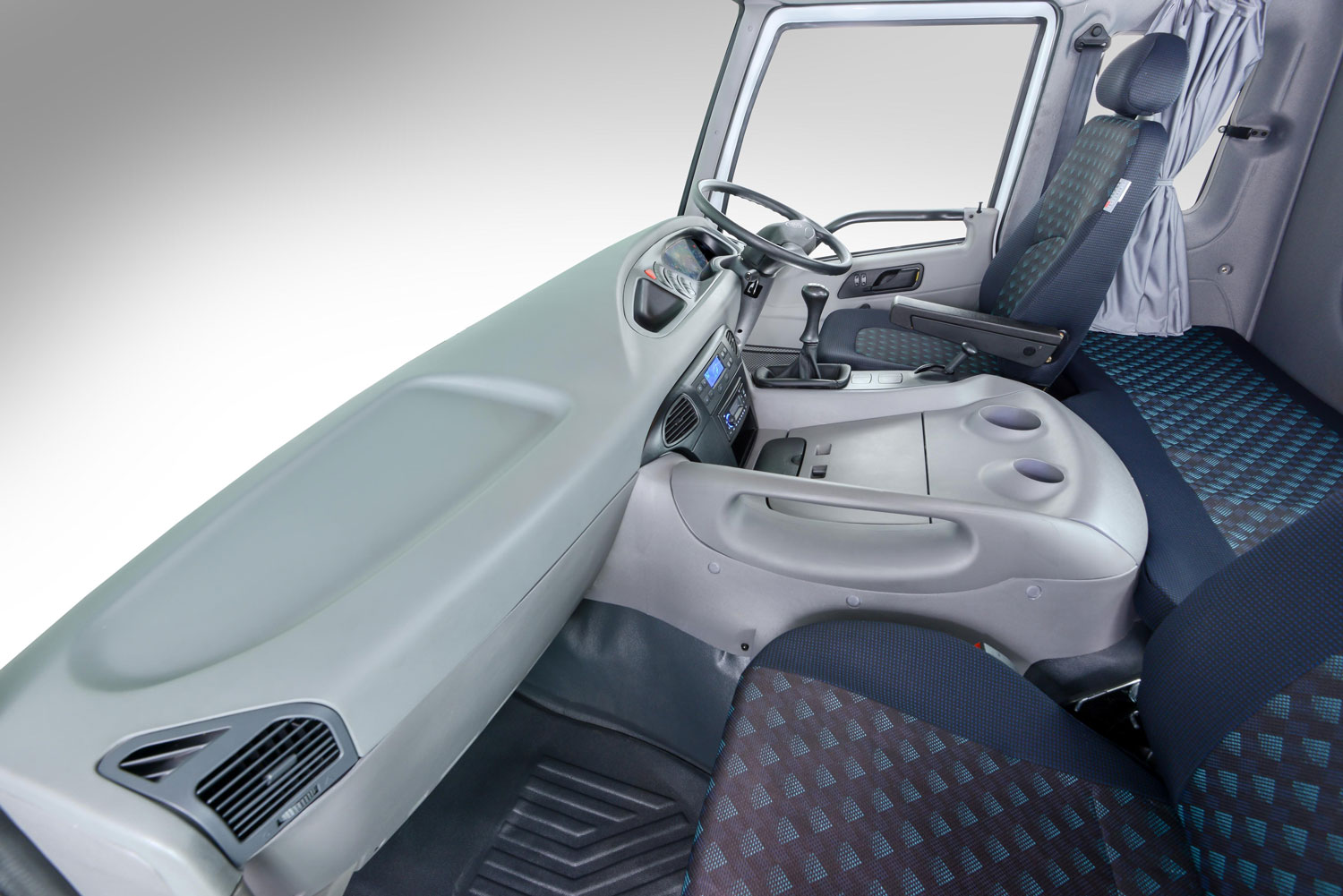

CAB
Cab Control
Forward Tilt Cab

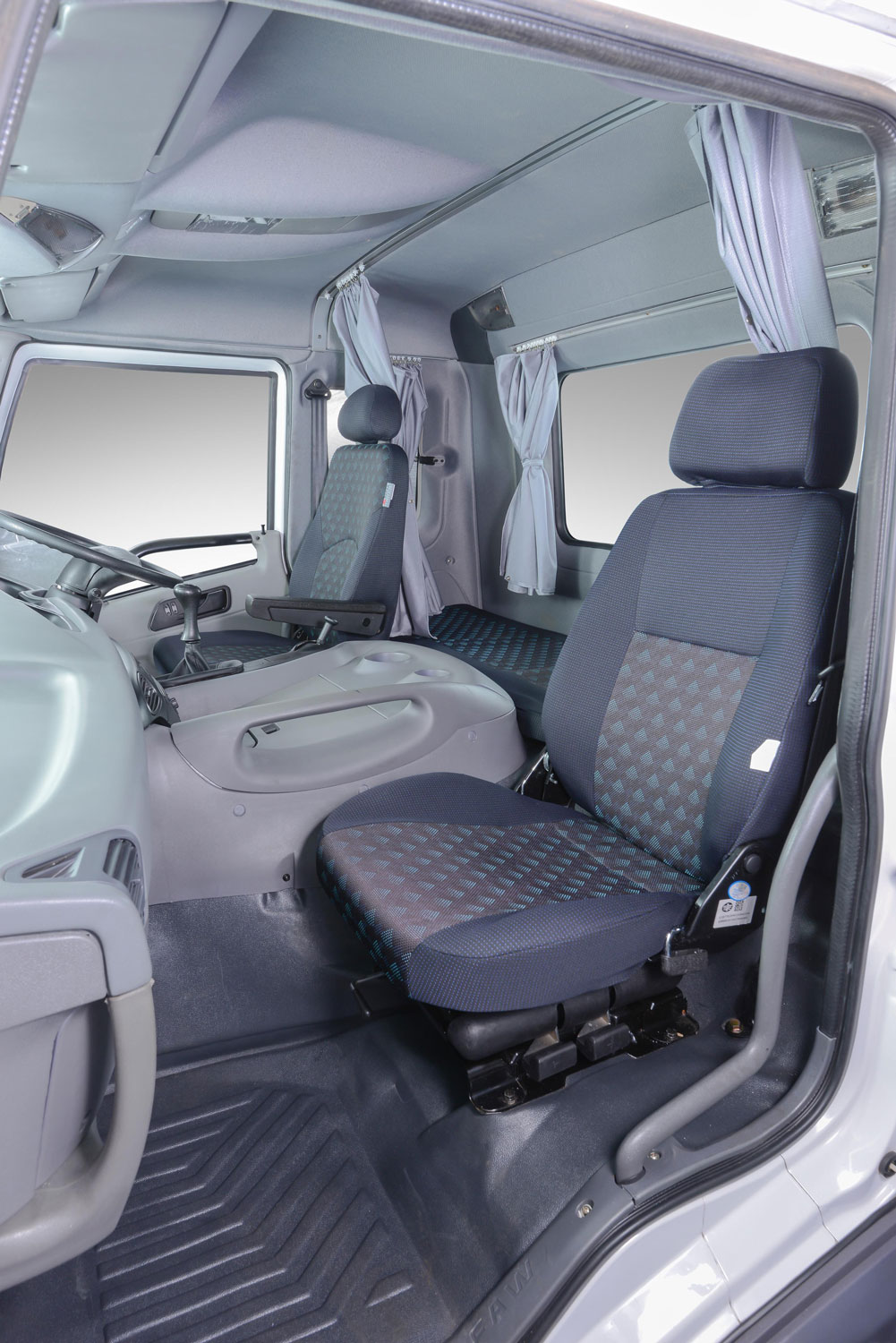

Seating
Driver + 1 Passengers
Type/Extras

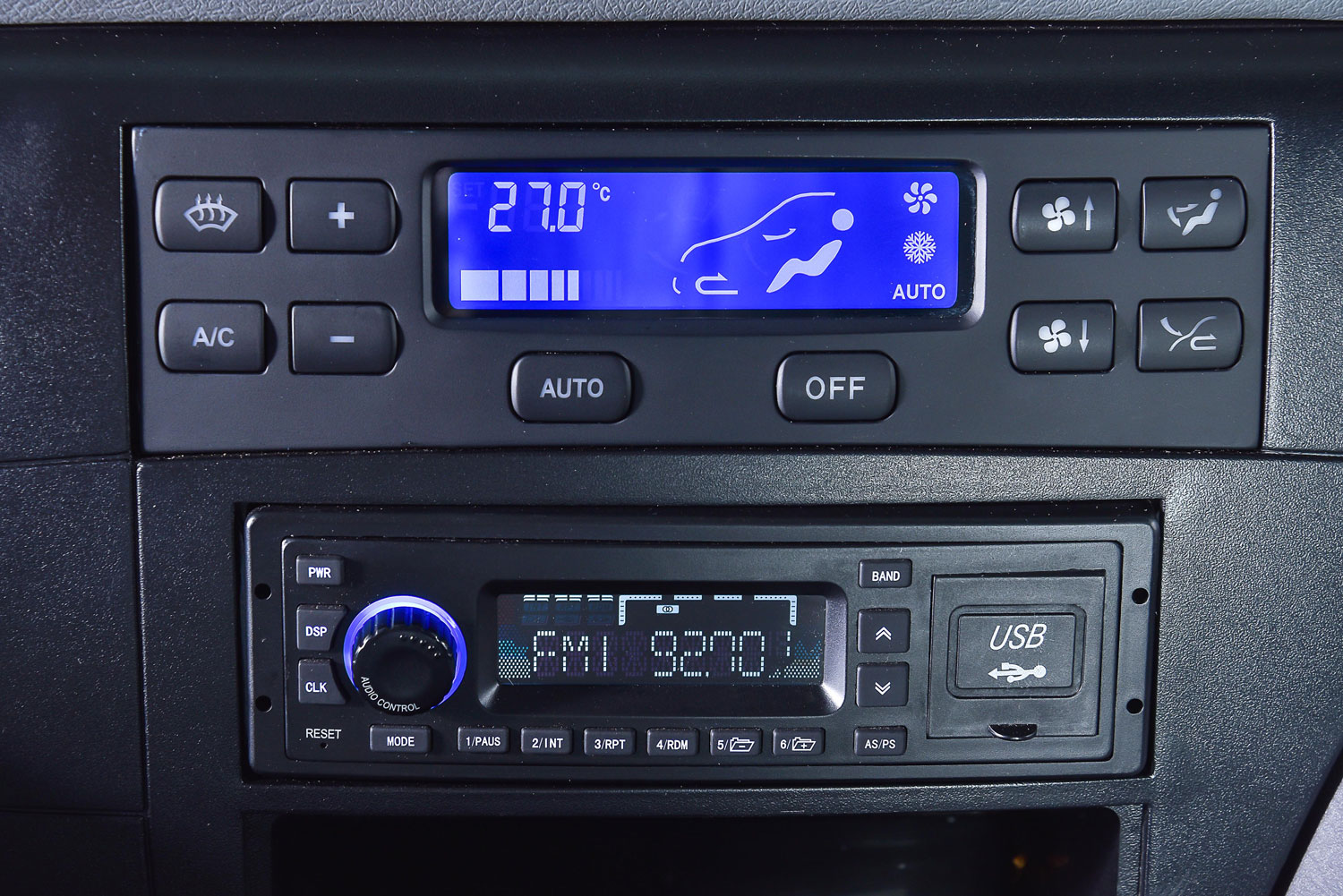

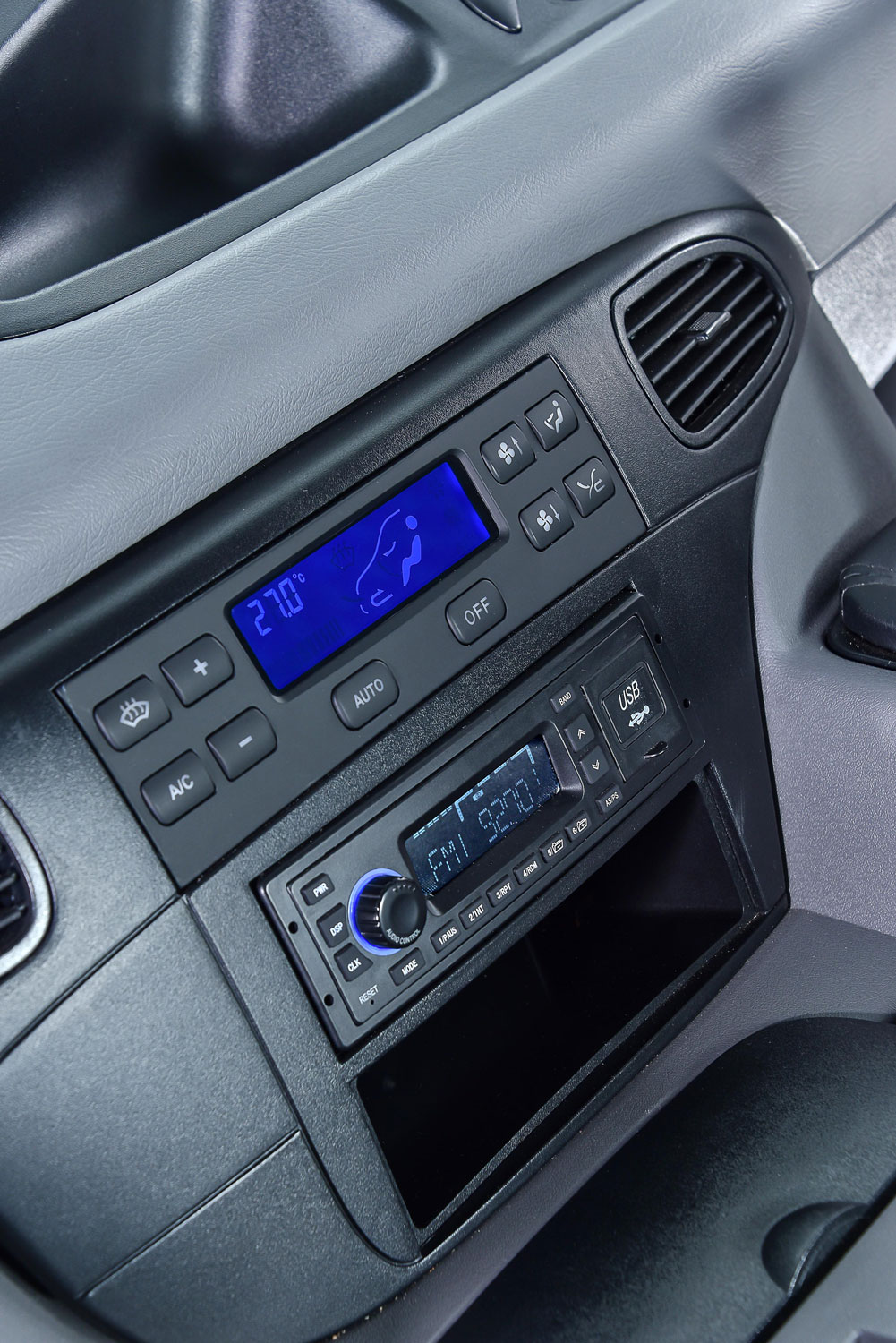

Semi Sleeper with Aircon, Radio with USB, Suspension Seat
ENGINE
Make & Model
FAW CA6DF2-24
Capacity
7 127 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard
Euro II
Power @ r/min (Kw)
177 @ 2 300
Torque @ r.min (Nm)
890 @ 1 400

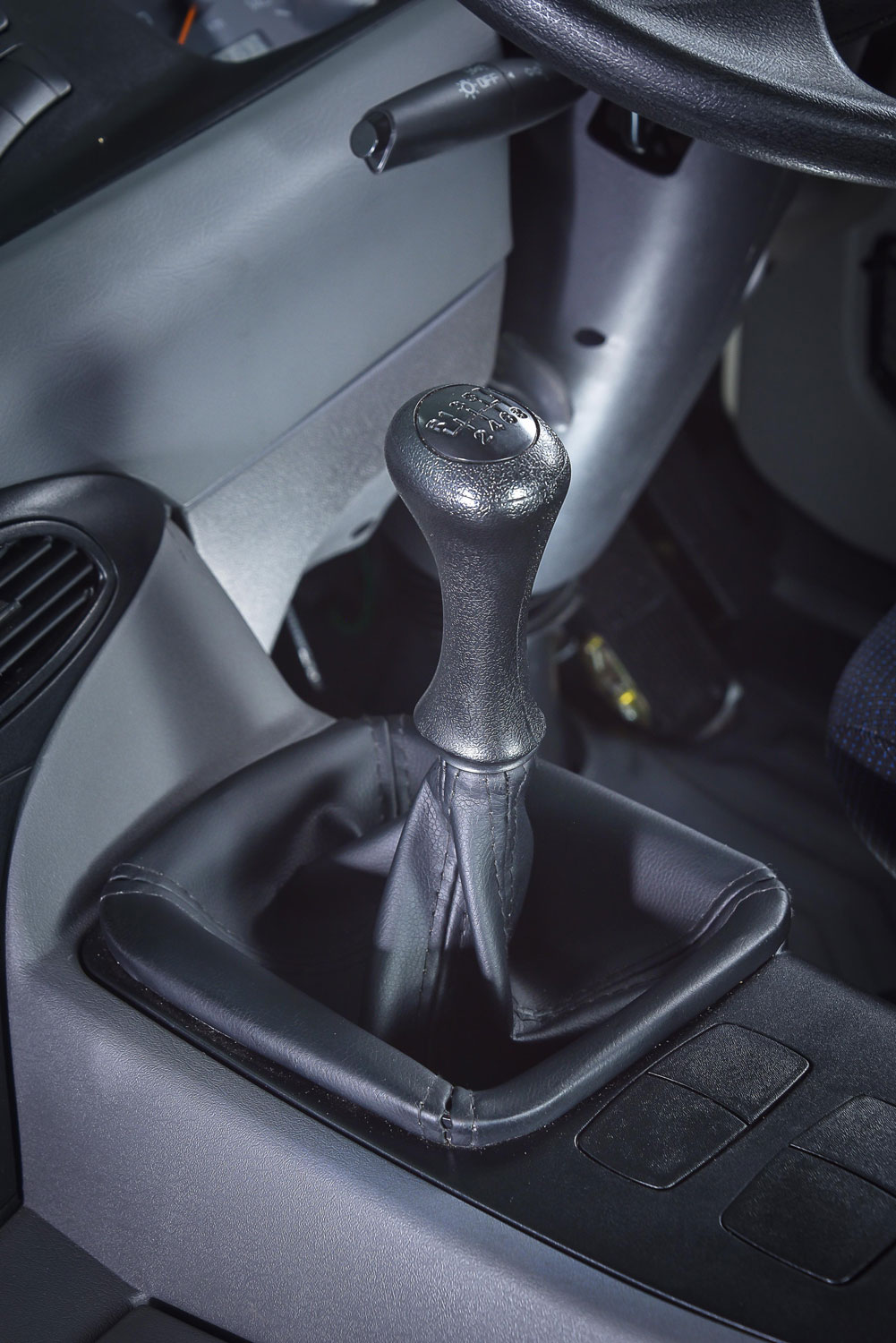

TRANSMISSION
Make & Model
Fast Gear 8 JS 118 TC - B
Type
8 Speed Range Change
Forward Ratios
9.32, 6.09, 4.06, 3.10, 2.30, 1.5,1.0, 0.76
Reverse Ratio
9.28
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
20.5:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
Auxiliary Brake
Engine Brake/Exhaust Brake
FUEL TANK
Number
One
Total Capacity
200 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs with Auxillary Springs
WHEELS
Tyre Size
11.00 R22.5 16PR
Rim Size
8.25 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
18 000 kg
Manufacturer’s Gross Combination Mass (GCM)
32 000 kg
Manufacturer’s Front Axle Mass (GA Front)
7 000 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
11 000 kg
Permissible Gross Vehicle Mass (V)
16 000 kg
Permissible Gross Combination Mass (D/T)
32 000 kg
Permissible Front Axle Mass (A Front)
7 000 kg
Permissible Rear Axle Mass (A Rear)
9 000 kg
Unladen Rear Axle Mass (T Front)
3 560 kg
Unladen Rear Axle Mass (T Rear)
2 260 kg
Unladen Mass Total (Tare)
5 820 kg
Body and Payload Allowance
10 180 kg
DIMENSIONS
Wheelbase (WB)
3 800 mm
Overall Length (OL)
6 375 mm
Cab Length (A)
2 185 mm
Overall Width (OW)
2 470 mm
Overall Height (OH)
2 760 mm
Front Overhang (D)
1 375 mm
Rear Overhang (ROH)
1 200 mm
Cab to Rear Axle (CA)
2 874 mm
Recommended Body Length
3 900 mm
Cab to End of Chassis (F)
4 074 mm
Minimum Turning Radius
6 500 mm
Minimum Turning Diameter
13 000 mm
Ground Clearance
220 mm
Track - Front
2 000 mm
Track - Rear
1 847 mm
Chassis Outer Width
865 mm
Chassis Inner Width
680 mm
