Model
8.140 FL-AMT
4x2 FREIGHT CARRIER / TIPPER

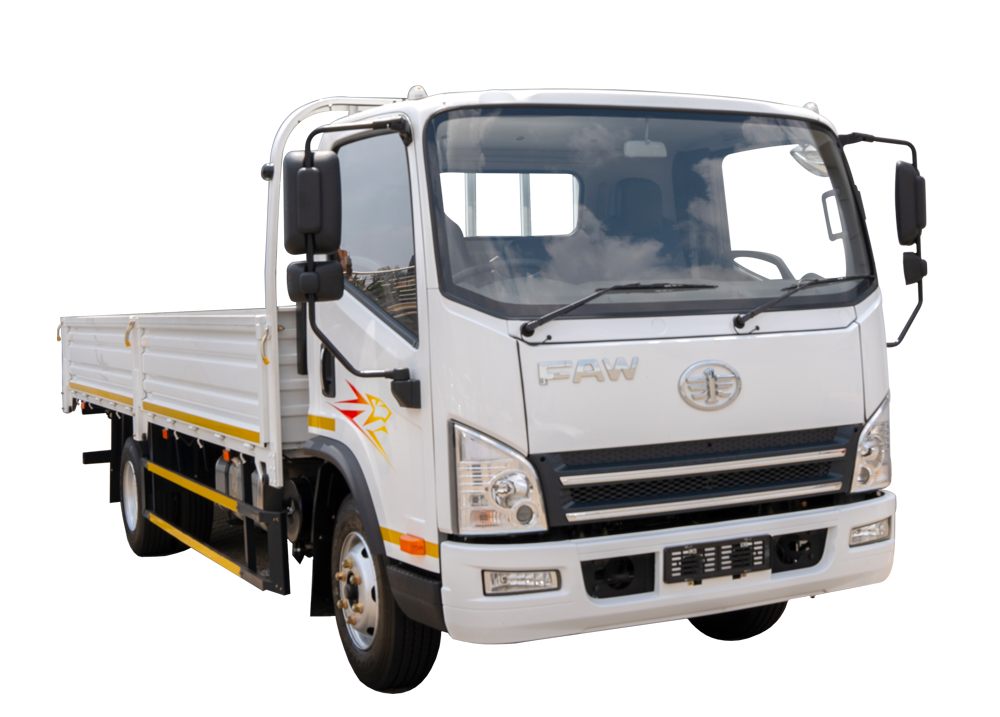

Model 8.140 FL-AMT
Starting at R 390,000
- Full Floating Extended High Roof Cab with innovative Flat Floor Design for optimal comfort
- 4 cylinder in line, water cooled, turbo charged & intercooled
- 6 Speed Automated Manual Transmission
- Full Air - Dual Circuit with ABS
- Front Suspension: Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
- Rear Suspension: Semi-Elliptical Leaf Springs with Auxillary Springs
- Equipped with China's most fuel efficient engine
Discover the Highlights
Specifications
8.140 FL-AMT
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 2 Passengers
Type/Extras
Day Cab, Aircon, Radio with USB
ENGINE
Make & Model
ISF3.8s3141
Capacity
3 760 m3
Layout & Type
4 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard
Euro III
Power @ r/min (Kw)
105 @ 2 600
Torque @ r.min (Nm)
450 @ 1 200 - 2 200
TRANSMISSION
Make & Model
FAST F6JZ45BM
Type
6 Speed Automated Manual
Forward Ratios
6.15, 3.36, 2.03, 1.37, 1.00, 0.79
Reverse Ratio
5.57
CLUTCH
Diameter
330 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
20.42:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 33%
Permissible Road Speed
100km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.33:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
Auxiliary Brake
Exhaust Brake
FUEL TANK
Number
One
Total Capacity
130 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs with Auxillary Springs
WHEELS
Tyre Size
235/75 R17.5 16PR
Rim Size
17.5 x 6.75
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
8 999 kg
Manufacturer’s Gross Combination Mass (GCM)
14 000 kg
Manufacturer’s Front Axle Mass (GA Front)
3 000 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
5 999 kg
Permissible Gross Vehicle Mass (V)
8 999 kg
Permissible Gross Combination Mass (D/T)
14 000 kg
Permissible Front Axle Mass (A Front)
3 000 kg
Permissible Rear Axle Mass (A Rear)
5 999 kg
Unladen Front Axle Mass (T Front)
1 870 kg
Unladen Rear Axle Mass (T Rear)
1 290 kg
Unladen Mass Total (Tare)
3 160 kg
DIMENSIONS
Wheelbase (WB)
4 200 mm
Overall Length (OL)
7 430 mm
Cab Length (A)
1 655 mm
Overall Width (OW)
2 095 mm
Overall Height (OH)
2 400 mm
Front Overhang (D)
1 155 mm
Rear Overhang (ROH)
2 080 mm
Cab to Rear Axle (CA)
3 700 mm
Recommended Body Length
5 400 mm
Cab to End of Chassis (F)
5 780 mm
Minimum Turning Radius
7 800 mm
Minimum Turning Diameter
15 600 mm
Ground Clearance
200 mm
Track - Front
1 650 mm
Track - Rear
1 540 mm
Chassis Outer Width
795 mm
Chassis Inner Width
645 mm
