Model

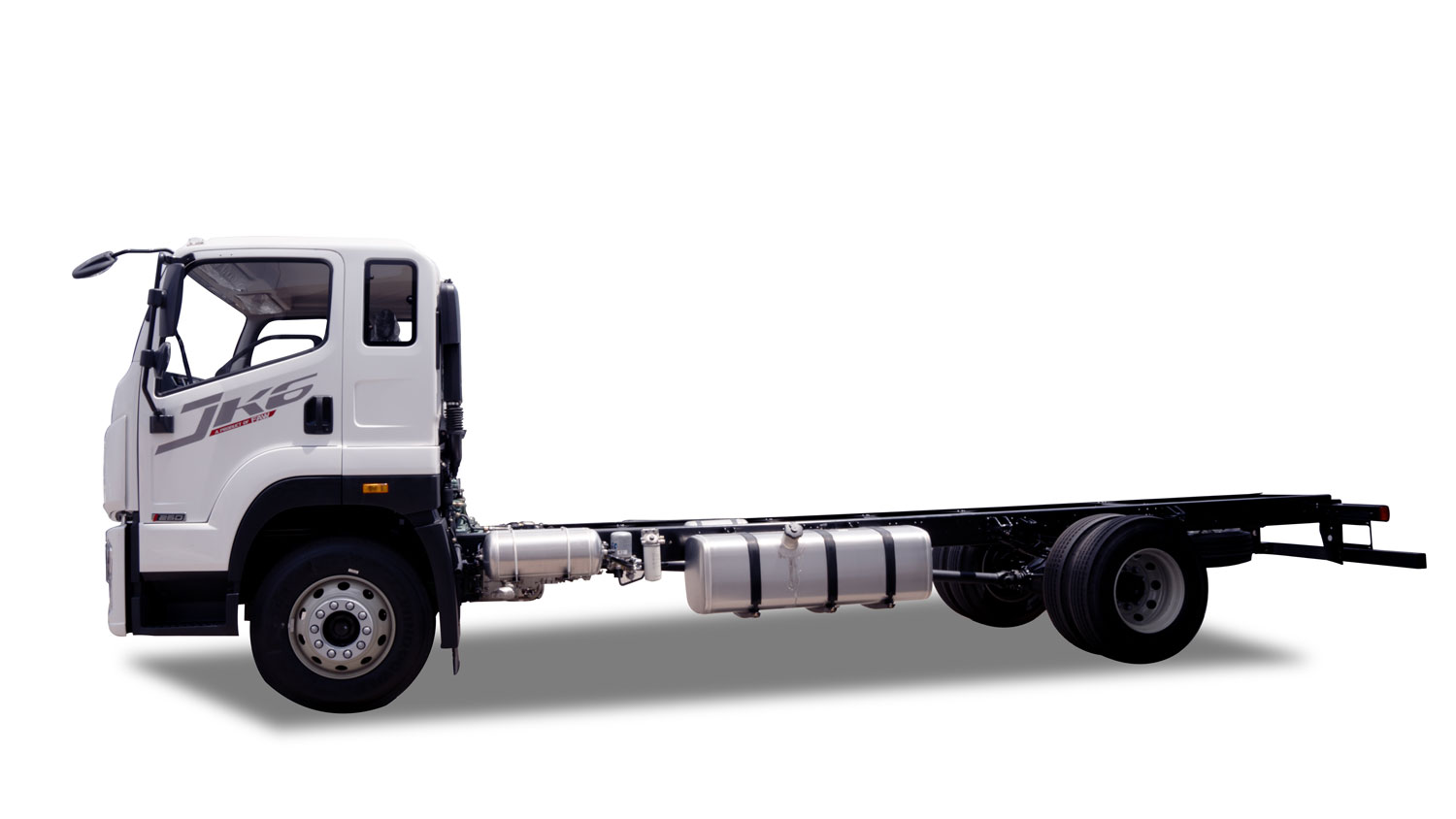

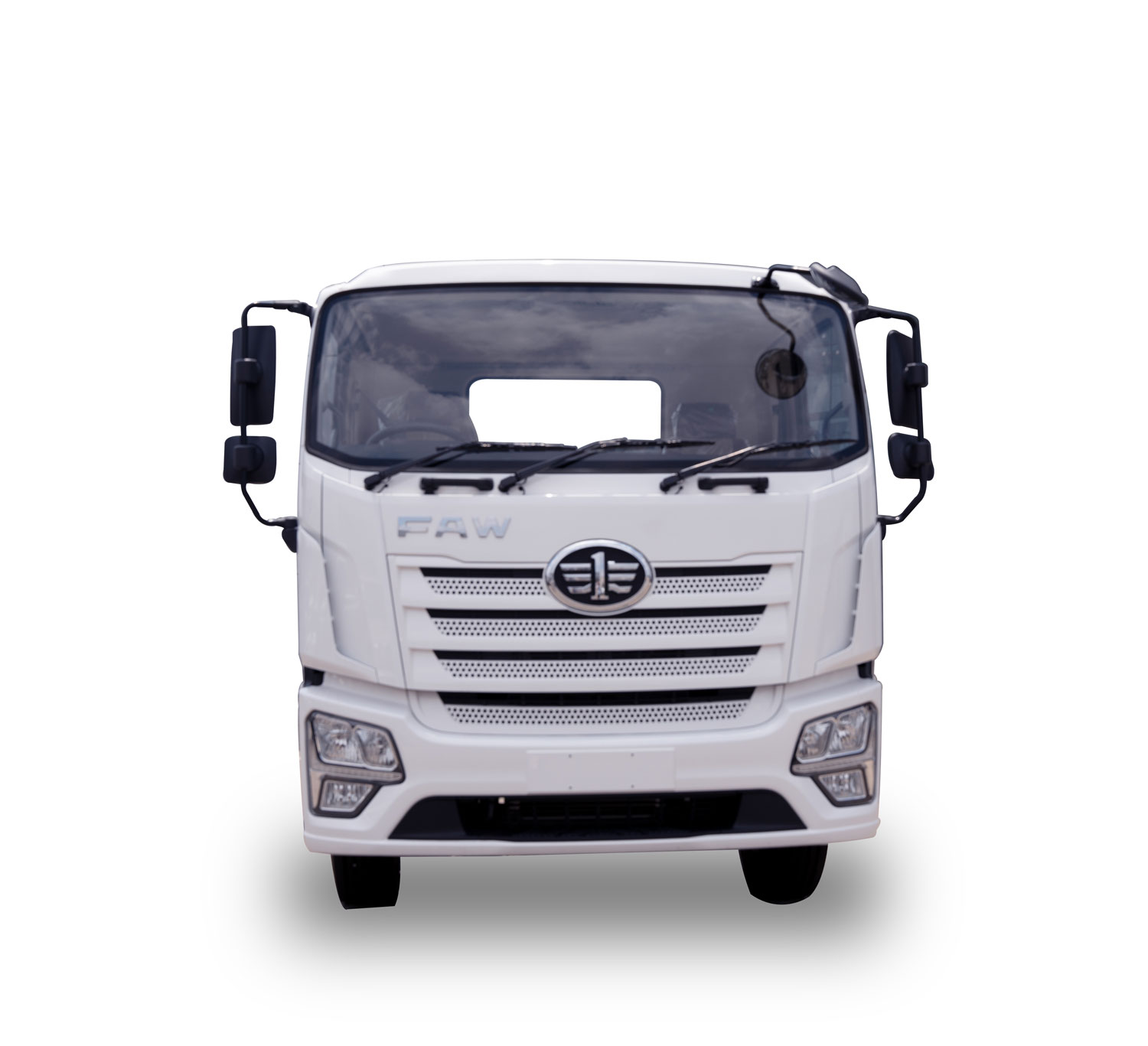

JK6 16.260 FL AMT
4x2 FREIGHT CARRIER
Model JK6 16.260 FL - AMT
Starting at R 710,000
- Full Floating Extended High Roof Cab with innovative Flat Floor Design for optimal comfort
- 6 cylinder in line, water cooled, turbo charged & intercooled
- 8 Speed Manual Syncromesh Transmission
- Full Air - Dual Circuit with ABS
- Front and Rear Suspension: Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
- Equipped with China's most fuel efficient engine
Discover the Highlights
Specifications
16.260 FL-AMT
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 2 Passengers
Type/Extras
Semi Sleeper with Aircon, Suspension Seat, Electric Windows
ENGINE
Make & Model
CA6DLD-26
Capacity
6 600 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard
Euro III/V
Power @ r/min (Kw)
194 @ 2 300 rpm
Torque @ r.min (Nm)
1 050 @ 1 300 - 1 700rpm
TRANSMISSION
Make & Model
FAST F8JZ110CM
Type
8 Speed Automated Manual
Forward Ratios
7.307, 5.469, 3.747, 2.810, 1.95,1.459, 1.000, 0.75
Reverse Ratio
7.307, 1.95
CLUTCH
Diameter
395 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
20.5:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.333:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
Auxiliary Brake
Engine Brake/Exhaust Brake
FUEL TANK
Number
One
Total Capacity
400 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Single-Line, Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Parobolic leaf springs with double acting shock absorbers with stabilizer bar
Rear Suspension
Parobolic leaf springs with double acting shock absorbers with stabilizer bar
WHEELS
Tyre Size
11R22 5-18PR
Rim Size
22.5 X 8.25
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
18 000 kg
Manufacturer’s Gross Combination Mass (GCM)
24 000 kg
Manufacturer’s Front Axle Mass (GA Front)
7 000 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
11 000 kg
Permissible Gross Vehicle Mass (V)
16 000 kg
Permissible Gross Combination Mass (D/T)
24 000 kg
Permissible Front Axle Mass (A Front)
7 000 kg
Permissible Rear Axle Mass (A Rear)
9 000 kg
Unladen Rear Axle Mass (T Front)
3 460 kg
Unladen Rear Axle Mass (T Rear)
1 930 kg
Unladen Mass Total (Tare)
5 390 kg
Body and Payload Allowance
10 610 kg
DIMENSIONS
Wheelbase (WB)
5 300 mm
Overall Length (OL)
9 210 mm
Cab Length (A)
2 150 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
2 880 mm
Front Overhang (D)
1 410 mm
Rear Overhang (ROH)
2 500 mm
Cab to Rear Axle (CA)
4 700 mm
Recommended Body Length
7 200 mm
Cab to End of Chassis (F)
7 350 mm
Minimum Turning Radius
9 100 mm
Minimum Turning Diameter
18 200 mm
Ground Clearance
280 mm
Track - Front
1 950 mm
Track - Rear
1 800 mm
Chassis Outer Width
865 mm
Chassis Inner Width
680 mm
