Model

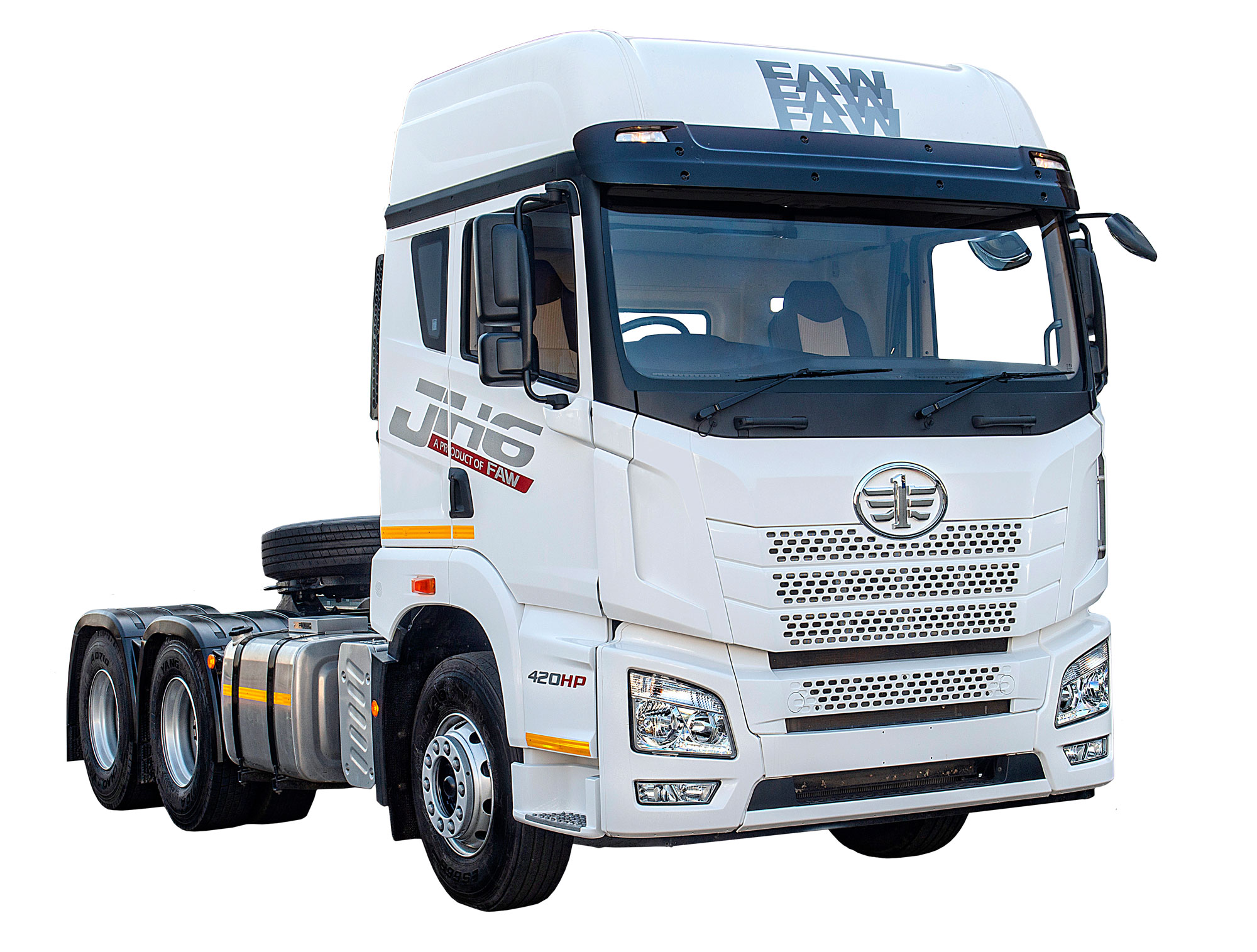

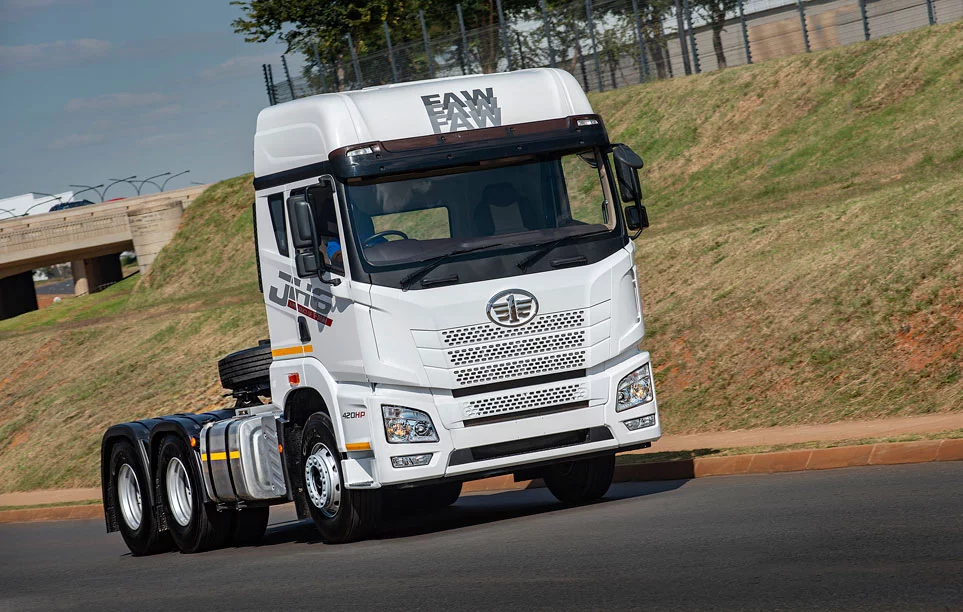

JH6 33.420 FT
6x4 TRUCK TRACTOR
Model JH6 33.420 FT
Starting at R 1,074,000
- The Newly designed and engineered JH6 33.420FT has a high-roof forward tilt cab with seating for the driver and a passenger

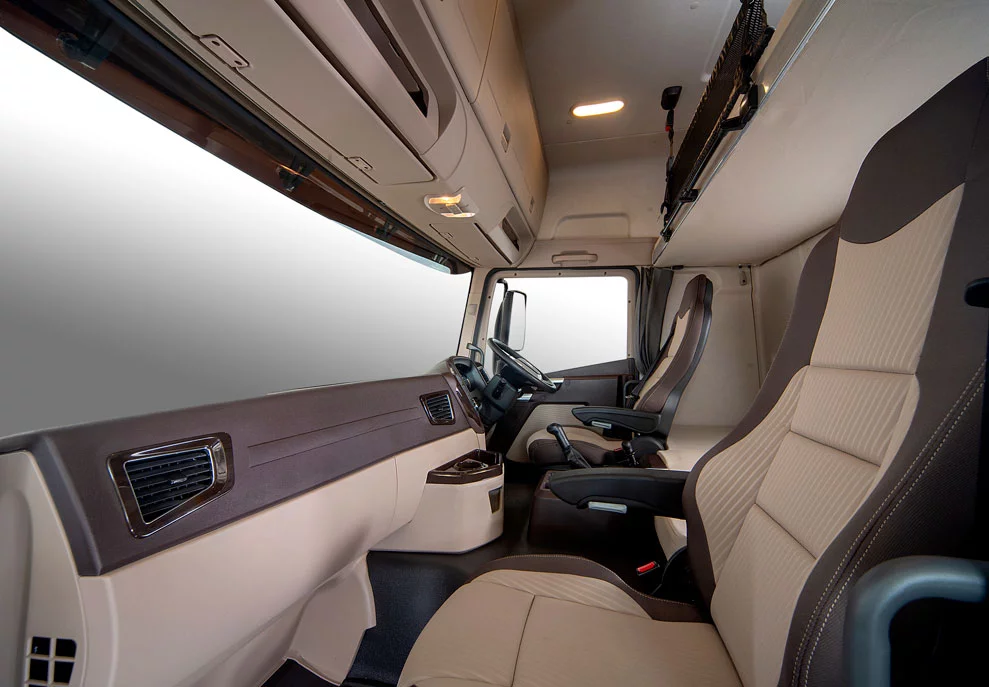

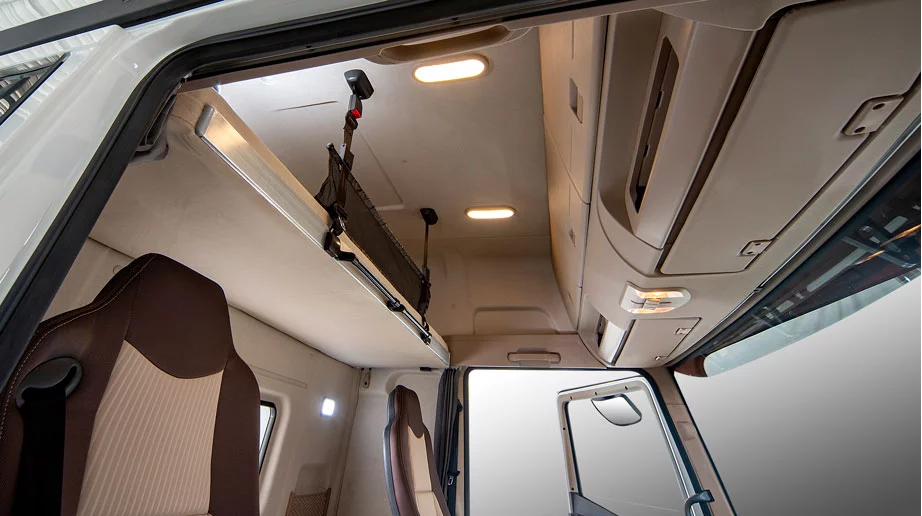

- It includes a double sleeper cab with air-conditioning and multi-functional radio with USB

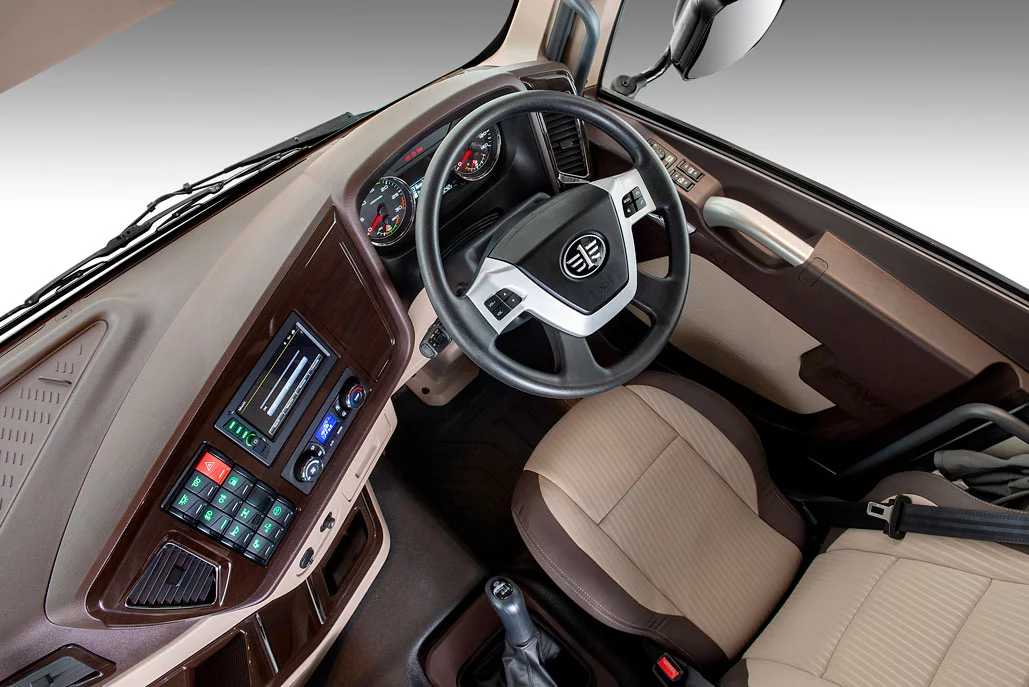

- Air suspension seat for enhanced driver comfort with multi-dimensional adjustment ability

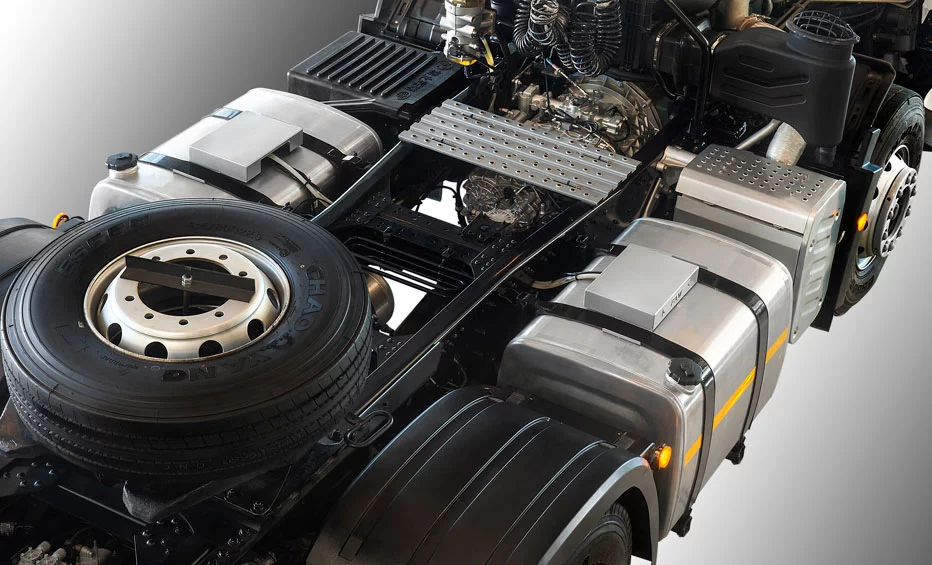

- Twin fuel 450litre tanks with a total capacity of 900litres loading
- Fitted with a Bosch manual injection pump is specifically made for African application
- 12-speed manual synchromesh gearbox is matched to a set of ratios specifically designed to provide optimum performance and fuel efficiency
Discover the Highlights
Specifications
JH6 33.420 FT
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras
Sleeper Cab with Aircon, Radiowith USB, Suspension seat
ENGINE
Make & Model
CA6DM2-42
Capacity
11 040 cm3
Layout & Type
6 cylinder in line, water cooled,turbo charged & intercooled
Emissions Standard
Euro II
Power @ r/min (Kw)
312 @ 1 900rpm
Torque @ r.min (Nm)
1 900 from 1 200 to 1 400rpm
TRANSMISSION
Make & Model
FAST C12JSDQXL200
Type
12 Speed Manual Syncromesh
Forward Ratios
i1=15.70,i2=12.25,i3=9.42
,i4=7.43,5=5.79,i6=4.52,
i7=3.47,i8=2.71,i9=2.08,
i10=1.64,i11=1.28,i12=1.00
Reverse Ratio
iRL=14.44,iRH=3.19
CLUTCH
Diameter
430 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
23:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (forged steel)
Rear Axle - Gearing Type
Full Floating - Single Reduction with Inter-axle, inter-wheel differential locks
Rear Axle Ratio
3.727:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
Auxiliary Braking
Engine brake and exhaust brake
FUEL TANK
Number
Two
Total Capacity
450+450 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
Generator
1 500W
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Springs with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs with Auxillary Springs
WHEELS
Tyre Size
315/80R22.5-18
Rim Size
9.00 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
33 700 kg
Manufacturer’s Gross Combination Mass (GCM)
62 200 kg
Manufacturer’s Front Axle Mass (GA Front)
7 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
26 000 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
56 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Front Axle Mass (T Front)
4 505kg
Unladen Rear Axle Mass (T Rear)
4 300 kg
Unladen Mass Total (Tare)
8 805
DIMENSIONS
Wheelbase (WB)
3 300 + 1 350
Overall Length (OL)
6 938 mm
Cab Length (A)
2 295 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 550 mm
Front Overhang (D)
1 495 mm
Rear Overhang (ROH)
770 mm
Cab to Rear Axle (CA)
3 850 mm
Cab to End of Chassis (F)
4 643 mm
Minimum Turning Radius
7 500 mm
Minimum Turning Diameter
13 000 mm
Ground Clearance
295 mm
Track - Front
2 020 mm
Track - Rear
1 830 mm
Chassis Outer Width
800 mm
Chassis Inner Width
640 mm
