Model
JH6 28.320 FL-AT
6X4 REFUSE COMPACTOR

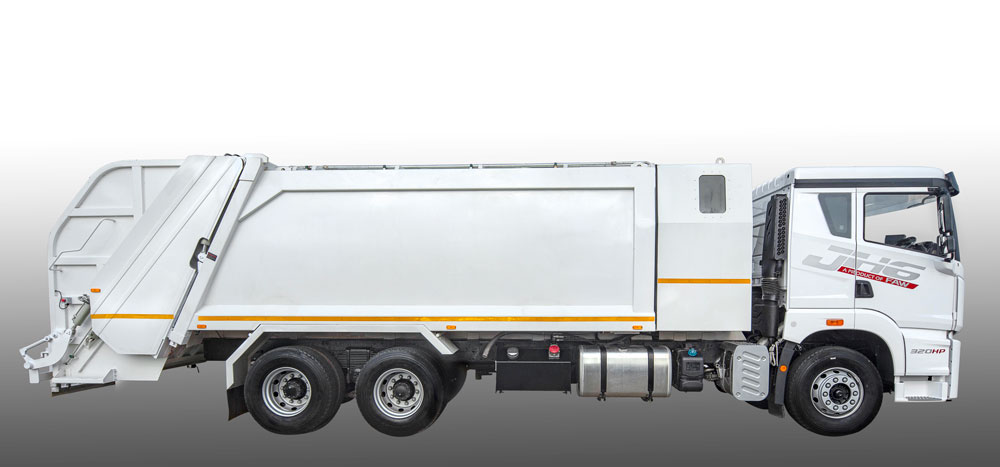

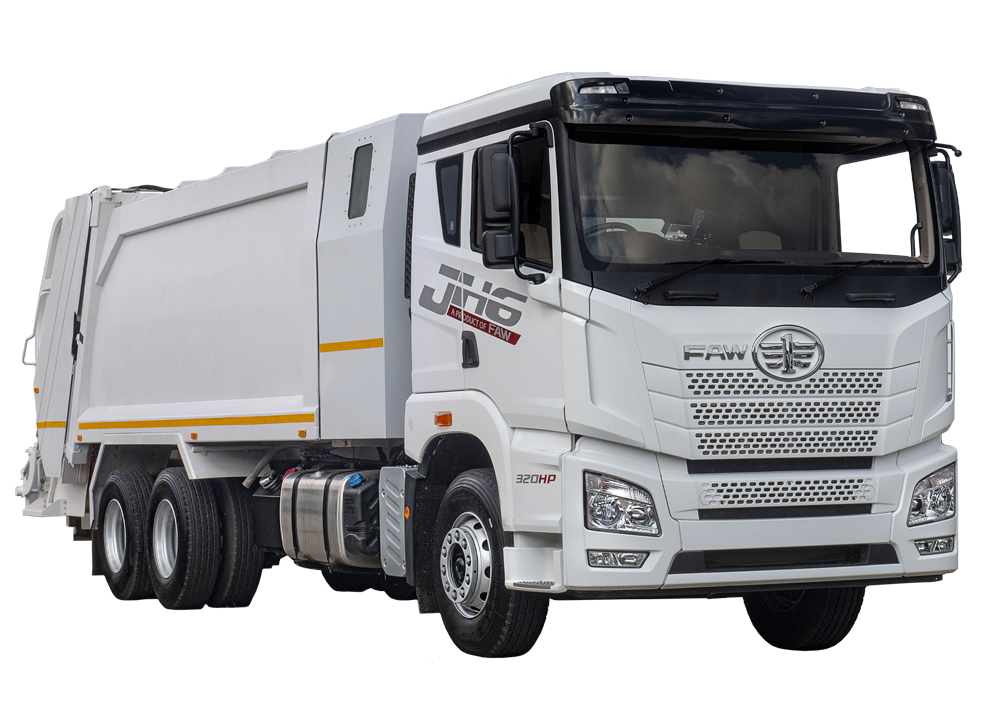

Model JH6 28.320 FL-AT Compactor
Starting at R 1,979,000
- 21m3 6x4 Refuse Compactor with Bin Lifters
- Full Floating Ergonomically Designed Sleeper Cab with Reinforced Bumper
- Weichai WP10 6 Cylinder In Line Turbo Charged and Intercooled Diesel Engine
- FAW 9 Speed Fully Synchromeshed Manual Transmission
- Full Air Dual Circuit WABCO Braking System with ABS
- Standard Aircon, Radio and MP3 with USB
Discover the Highlights
Specifications
JH6 28.320 FL-AT Compactor

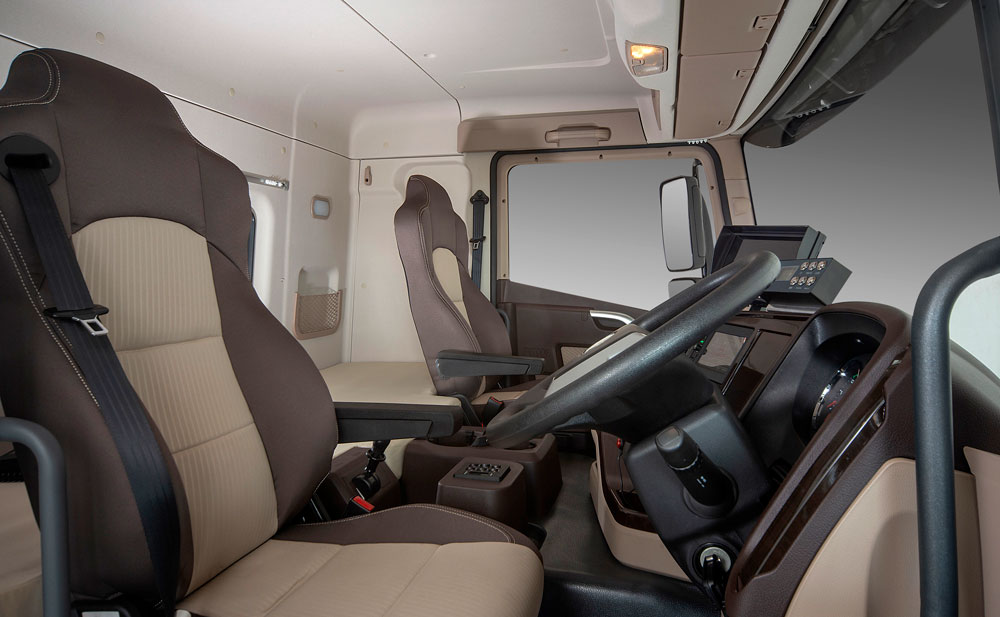

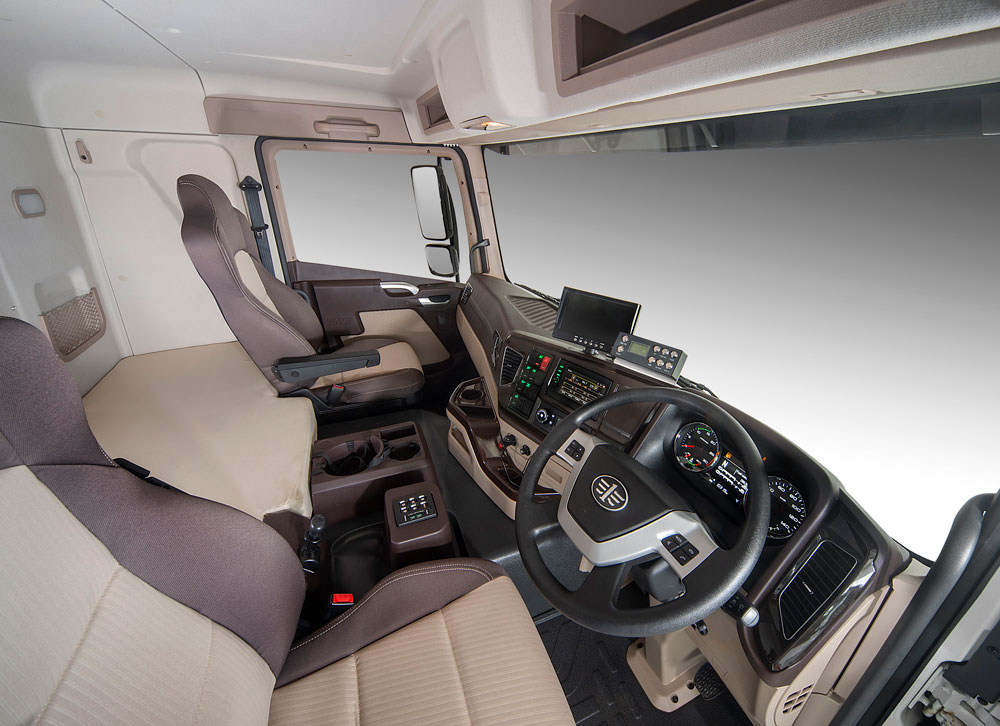

CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras
Sleeper Cab with Aircon, Radiowith USB, Suspension seat
ENGINE
Make & Model
FAW CA6DL1-32E5
Capacity
7 700 cm3
Layout & Type
6 in-line/water-cooling/Fourstroke/Inter-cooling/Directinjection
Emissions Standard
Euro 5
Power @ r/min (Kw)
5 @ 2 300 rpm
Torque @ r.min (Nm)
1 250/1 300 - 1 700
TRANSMISSION
Make & Model
ALLISON 3200 AT
Type
6 Speed Fully Automatic Gearboxwith Hydraulic Torque Converter
Forward Ratios
i1=3.49,i2=1.86,i3=1.41,i4=1.00,i5=0.75,i6=0.65
Reverse Ratio
iR=5.03
STEERING
Gear Ratio
23.3:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
80km/h
AXLES
Front Axle
I- Beam section (Forged Steel)
Rear Axle - Gearing Type
Single Reduction
Rear Axle Ratio
6,5
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
FUEL TANK
Number
One
Total Capacity
400 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Semi-Elliptical Leaf Spring with Double Acting Shock Absorbers
Rear Suspension
Semi-Elliptical Leaf Springs
WHEELS
Tyre Size
315/80R22.5-18
Rim Size
9.00 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
28 000 kg
Manufacturer’s Gross Combination Mass (GCM)
50 000 kg
Manufacturer’s Front Axle Mass (GA Front)
7 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
20 300 kg
Permissible Gross Vehicle Mass (V)
25 700 kg
Permissible Gross Combination Mass (D/T)
50 000 kg
Permissible Front Axle Mass (A Front)
7 700 kg
Permissible Rear Axle Mass (A Rear)
18 000 kg
Unladen Front Axle Mass (T Front)
4 650 kg
Unladen Rear Axle Mass (T Rear)
3 645 kg
Unladen Mass Total (Tare)
8 295 kg
Body and Payload Allowance
16 000 kg
DIMENSIONS
Wheelbase (WB)
5 100 + 1 350
Overall Length (OL)
8 945 mm
Cab Length (A)
2 150 mm
Overall Width (OW)
2 500 mm
Overall Height (OH)
3 050 mm
Front Overhang (D)
1 495 mm
Rear Overhang (ROH)
1000 mm
Cab to Rear Axle (CA)
4 445 mm
Recommended Body Length
9 080 mm
Minimum Cab Clearance
180 mm
Cab to End of Chassis (F)
6 795 mm
Minimum Turning Radius
9,5 mm
Minimum Turning Diameter
19 mm
Ground Clearance
220 mm
Track - Front
2 020 mm
Track - Rear
1 860 mm
Chassis Outer Width
865 mm
Chassis Inner Width
705 mm
