Model

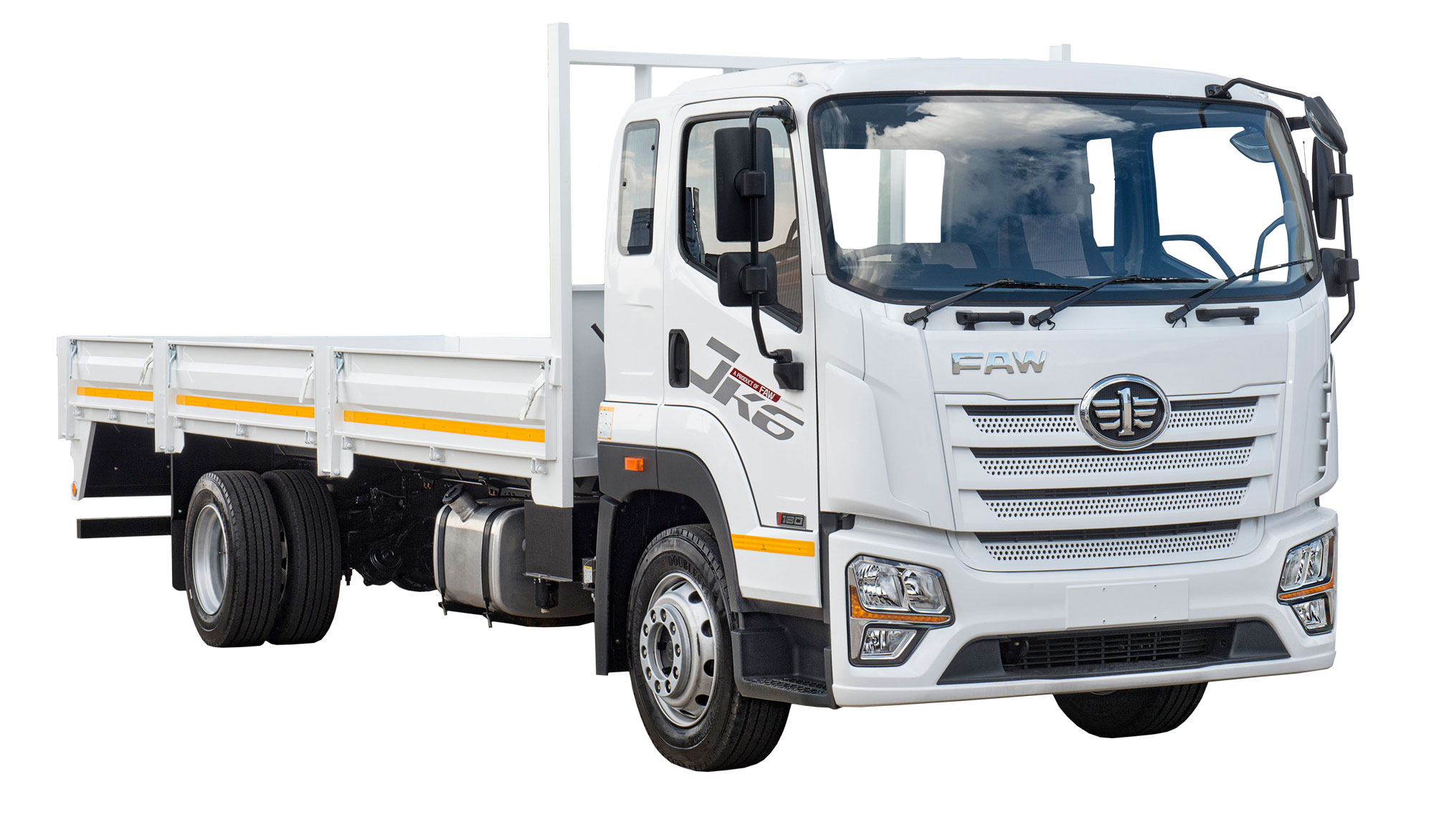

JK6 15.220 FL (8 Ton)
4x2 FREIGHT CARRIER
Model JK6 15.220 FL (8 Ton)
Starting at R 499,000
- Spacious, air-conditioned semi-sleeper cab
- 6 cylinder in line, water cooled, turbo charged & intercooled
- Delivering 165 kW at 2 500 r/min with 770 Nm of peak torque
- 8 Speed Manual Syncromesh Transmission
- Full Air - Dual Circuit Brakes with ABS
- Boasts a very usable payload of 9 800 kg
Discover the Highlights
Specifications
6.130FL-MT (3.5 Ton)
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 2 Passengers
Type/Extras
Semi Sleeper with Aircon, Suspension Seat, Electric Windows
ENGINE
Make & Model
FAW BF6M2012-22E3
Capacity
6 060 cm3
Layout & Type
6 cylinder in line, water cooled, turbo charged & intercooled
Emissions Standard
Euro III
Power @ r/min (Kw)
165 @ 2 500
Torque @ r.min (Nm)
770 @ 1 500
TRANSMISSION
Make & Model
FAST-8JS85TC
Type
8 Speed Manual Syncromesh
Forward Ratios
7.34, 5.24, 3.76, 2.82, 1.95, 1.39, 1.00, 0.75
Reverse Ratio
7.34, 1.95
CLUTCH
Diameter
395 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
20.5:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
80km/h
AXLES
Front Axle
I-Section Beam (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
Auxiliary Brake
Exhaust Brake
FUEL TANK
Number
One
Total Capacity
200 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Parobolic leaf springs with double acting shock absorbers with stabilizer bar
Rear Suspension
Parobolic leaf springs
WHEELS
Tyre Size
275/70 R22.5 16PR
Rim Size
8.25 X 22.5
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
16 000 kg
Manufacturer’s Gross Combination Mass (GCM)
24 000 kg
Manufacturer’s Front Axle Mass (GA Front)
6 000 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
10 000 kg
Permissible Gross Vehicle Mass (V)
15 000 kg
Permissible Gross Combination Mass (D/T)
24 000 kg
Permissible Front Axle Mass (A Front)
6 000 kg
Permissible Rear Axle Mass (A Rear)
9 000 kg
Unladen Front Axle Mass (T Front)
2 950 kg
Unladen Rear Axle Mass (T Rear)
1 850 kg
Unladen Mass Total (Tare)
4 800 kg
Body and Payload Allowance
10 200 kg
DIMENSIONS
Wheelbase (WB)
5 300 mm
Overall Length (OL)
9 210 mm
Cab Length (A)
2 150 mm
Overall Width (OW)
2 380 mm
Overall Height (OH)
2 780 mm
Front Overhang (D)
1 410 mm
Rear Overhang (ROH)
2 500 mm
Cab to Rear Axle (CA)
4 700 mm
Recommended Body Length
7 200 mm
Cab to End of Chassis (F)
7 350 mm
Minimum Turning Radius
9 100 mm
Minimum Turning Diameter
18 200 mm
Ground Clearance
413 mm
Track - Front
1 950 mm
Track - Rear
1 800 mm
Chassis Outer Width
865 mm
Chassis Inner Width
680 mm
