Model
4.110 FL-MT
4x2 FREIGHT CARRIER

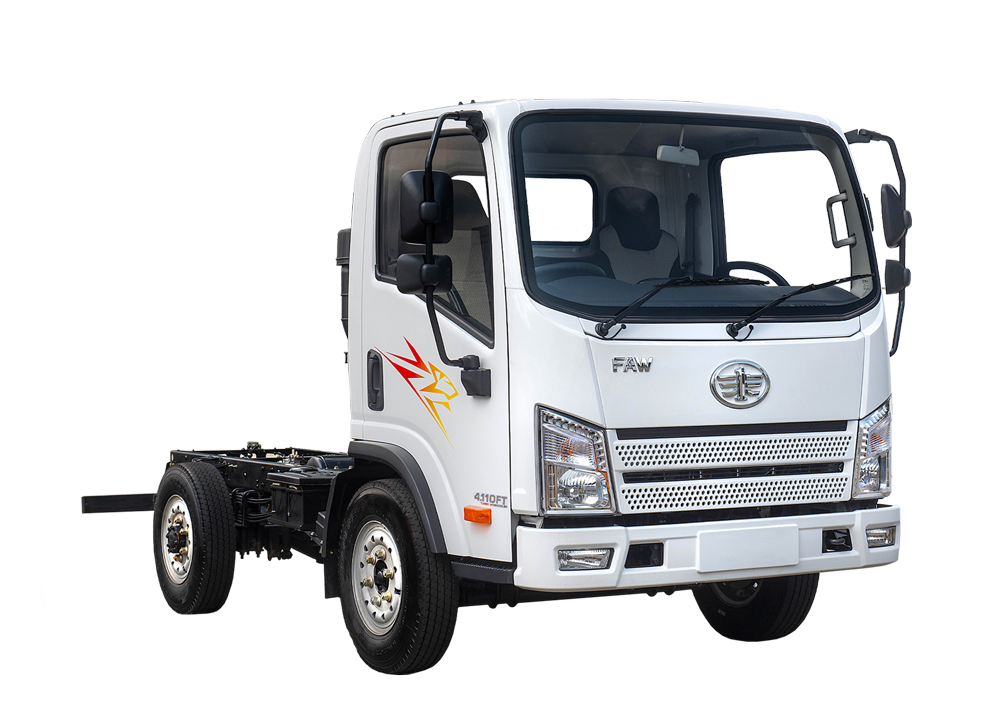

Model 4.110 FL-MT
Starting at R 230,000
- Full Floating Extended High Roof Cab with innovative Flat Floor Design for optimal comfort
- 4 in line, water cooled, 4 stroke, intercooled & direct injection
- 5 Speed Manual Syncromesh Transmission
- Full Air - Dual Circuit with ABS
- Front and Rear Parabolic Spring Suspension
- Equipped with China's most fuel efficient engine
Discover the Highlights
Specifications
4.110 FL-MT
CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 1 Passengers
Type/Extras
Day Cab, Aircon, Radio with USB
ENGINE
Make & Model
FAW CA4DB1-11E3
Capacity
2 200 m3
Layout & Type
4 in line, water cooled, 4 stroke, intercooled & direct injection
Emissions Standard
Euro III
Power @ r/min (Kw)
81 @ 3 200rpm
Torque @ r.min (Nm)
) 280 @ 1 600 - 2 400rpm
TRANSMISSION
Make & Model
WLY MG85B
Type
5 Speed Manual Syncromesh
Forward Ratios
4.769, 2.607, 1.489, 1.000, 0.721
Reverse Ratio
4.412
CLUTCH
Diameter
275 mm
Type
Dry Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
16.39:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 35%
Permissible Road Speed
100km/h
AXLES
Front Axle
I- Beam section (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
FUEL TANK
Number
One
Total Capacity
80 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Parobolic leaf springs with double acting shock absorbers
Rear Suspension
Parobolic leaf springs
WHEELS
Tyre Size
7.00R16-14PR
Rim Size
5.50 X 16
Type
Tube Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
4 500 kg
Manufacturer’s Gross Combination Mass (GCM)
7 050 kg
Manufacturer’s Front Axle Mass (GA Front)
1 700 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
2 800 kg
Permissible Gross Vehicle Mass (V)
4 500 kg
Permissible Gross Combination Mass (D/T)
7 050 kg
Permissible Front Axle Mass (A Front)
1 700 kg
Permissible Rear Axle Mass (A Rear)
2 800 kg
Unladen Front Axle Mass (T Front)
1 340 kg
Unladen Rear Axle Mass (T Rear)
620 kg
Unladen Mass Total (Tare)
2 000 kg
Body and Payload Allowance
2 500 kg
DIMENSIONS
Wheelbase (WB)
2 500 mm
Overall Length (OL)
4 905 mm
Cab Length (A)
1 600 mm
Overall Width (OW)
1 907 mm
Overall Height (OH)
2 200 mm
Front Overhang (D)
1 155 mm
Rear Overhang (ROH)
1 250
Cab to Rear Axle (CA)
1 950 mm
Permissible Road Speed
80km/h
Recommended Body Length
3 250 mm
Minimum Cab Clearance
175
Cab to End of Chassis (F)
3 310 mm
Minimum Turning Radius
5.75 mm
Minimum Turning Diameter
12 mm
Ground Clearance
215 mm
Track - Front
1 677 mm
Track - Rear
1 475 mm
Chassis Outer Width
7 60 mm
Chassis Inner Width
752 mm
