Model

6.130FL-MT (3.5 Ton)

4x2 FREIGHT CARRIER



Model 6.130FL-MT (3.5 Ton)

Starting at R 285,000

  • New full air brake system - Dual circuit with ABS

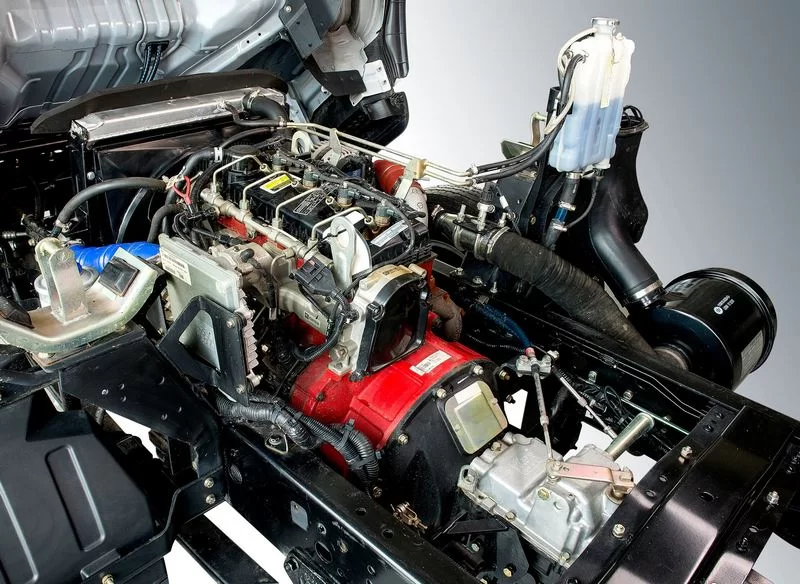

  • Cummins ISF2.8S Common Rail Diesel Engine
  • WLY 6 Speed Manual Fully Synchromeshed Transmission
  • Parabolic Spring Suspension for enhanced stability and comfort
  • Standard Aircon, Radio, MP3/USB and Cruise Control features
  • 4.7 Ton Body & Payload Allowance
  • Get a 1 Year / 75 000km Free Standard Service Plan


Discover the Highlights

Retail Price

R 285,000

Fuel Economy Range

n/a

Seating

3

Engine Capacity

2.780 cm3

Transmission

6 Speed Manual Syncromesh

Fuel Type

Diesel

Download Brochure Book a Test Drive Payment Calculator


Specifications

6.130FL-MT (3.5 Ton)

CAB
Cab Control
Forward Tilt Cab
Seating
Driver + 2 Passengers
Type/Extras
Day Cab, Aircon, Radio with USB
ENGINE
Make & Model
Cummins ISF 2.8s3129T
Capacity
2 780 m3
Layout & Type
4 cylinder in line, water cooled, turbo charged & intercooled
Power @ r/min (Kw)
96 @ 3 200rpm
Torque @ r.min (Nm)
) 310 @ 1 600 - 2 700
TRANSMISSION
Make & Model
WLY6G40
Type
6 Speed Manual Syncromesh
Forward Ratios
6.143, 3.361, 2.105, 1.341, 1.0, 0.79
Reverse Ratio
5.571
CLUTCH
Diameter
310 mm
Type
Single Plate
Operation
Hydraulic-Air Assisted
STEERING
Gear Ratio
17.76:1
Type
Recirculating Ball
Operation
Power Assisted
PERFORMANCE
Gradeability @ V
Max 30%
Permissible Road Speed
100km/h
AXLES
Front Axle
I- Beam section (Forged Steel)
Rear Axle - Gearing Type
Full Floating Single Reduction
Rear Axle Ratio
4.875:1
BRAKES
System Type
Full Air - Dual Circuit with ABS
Park/Emergency System
Spring Brakes/Rear Booster
FUEL TANK
Number
One
Total Capacity
130 Litre
ELECTRICAL SYSTEM
System Voltage & Type
24V Negative Earth
No. of Batteries
Two X 12V
CHASSIS
Type
Straight Ladder Type - Riveted
Front Suspension
Parobolic leaf springs with double acting shock absorbers
Rear Suspension
Parobolic leaf springs
WHEELS
Tyre Size
7.00R16-14PR
Rim Size
6.00 X 16
Type
Tubeless Radial
MASS DATA
Manufacturer’s Gross Vehicle Mass (GVM)
6 999 kg
Manufacturer’s Gross Combination Mass (GCM)
10 000 kg
Manufacturer’s Front Axle Mass (GA Front)
2 500 kg
Manufacturer’s Rear Axle Mass (GAU Rear)
4 499 kg
Permissible Gross Vehicle Mass (V)
6 999 kg
Permissible Gross Combination Mass (D/T)
10 000 kg
Permissible Front Axle Mass (A Front)
2 500 kg
Permissible Rear Axle Mass (A Rear)
4 499 kg
Unladen Front Axle Mass (T Front)
1 500 kg
Unladen Rear Axle Mass (T Rear)
820 kg
Unladen Mass Total (Tare)
2 320 kg
Body and Payload Allowance
4 679 kg
DIMENSIONS
Wheelbase (WB)
3 300 mm
Overall Length (OL)
5 850 mm
Cab Length (A)
1 655 mm
Overall Width (OW)
2 010 mm
Overall Height (OH)
2 335 mm
Front Overhang (D)
1 150 mm
Rear Overhang (ROH)
1 400
Cab to Rear Axle (CA)
2 795 mm
Recommended Body Length
4 200 mm
Cab to End of Chassis (F)
4 195 mm
Minimum Turning Radius
6 500 mm
Minimum Turning Diameter
13 000 mm
Ground Clearance
200 mm
Track - Front
1 635 mm
Track - Rear
1 525 mm
Chassis Outer Width
795 mm
Chassis Inner Width
645 mm
